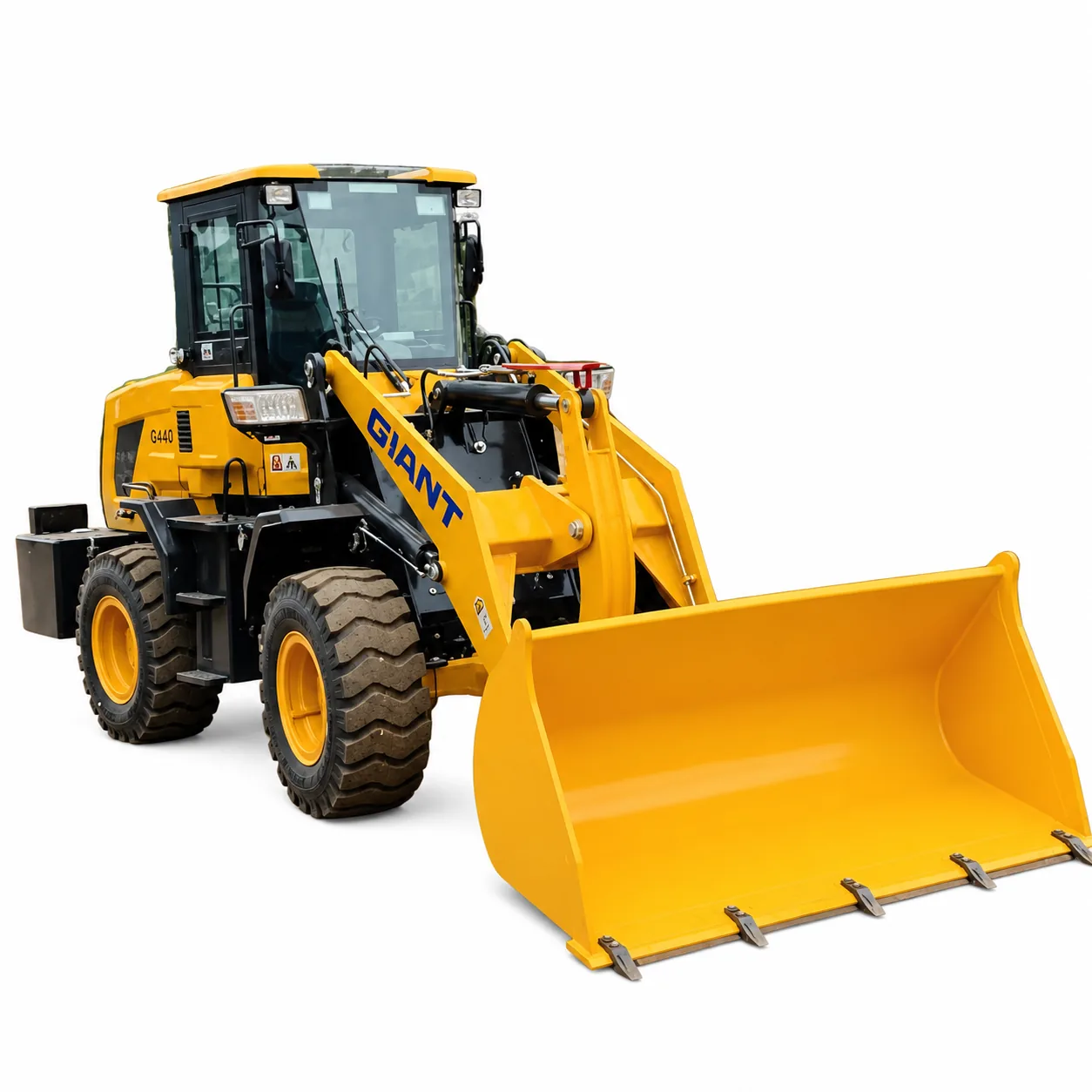

G942
2 Ton Wheel Loader
2200kg rated load, 1.0m³ bucket, 103HP engine.
Includes standard construction bucket, quick hitch, enclosed cab with aircon & radio.
Supply and applications
The G942 is suited to loading, stockpile handling and general material movement where a compact footprint and useful lift capacity are required. FE Industrial Supplies can confirm current availability, attachments and delivery requirements for your site.
Material loading
Stockpile handling
Yard work
Construction sites
Key Information
2200kg
1.0m³
103HP
Technical Specifications
| Engine | Yunnei 4102T (76kW / 103HP), 3800cc |
| Transmission | 29A separated |
| Hydraulic flow | 120 L/min |
| Working pressure | 18 MPa |
| Axle | Medium hub reduction axle |
| Tyres | 16/70-20 |
| Dumping height | 3500mm |
| Unloading distance | 1070mm |
| Machine weight | 5600kg |
| Dimensions (L × W × H) | 6410mm × 2060mm × 3020mm |
| Bucket width | 2000mm |
| Bucket capacity | 1.0m³ |
| Rated load capacity | 2200kg |
| Arm thickness | 30mm |
| Boom centre distance | 960mm |
| Cylinder size | 55mm / 90mm |
| Cylinder diameter | 70mm / 110mm |
| Rubber wheel track | 1555mm |
| Wheelbase | 2450mm |
| Minimum ground clearance | 310mm |
| Counterweight type | 1900×880×570×400 STD |
Attachments
Grapple bucket
Snow sweeper
Rotary barrel clamp
Bale clamp
Grain bucket
Pallet fork
Log fork
Sweeper
360° rotary grapple
Mixer bucket
Grass fork
Blade
4-in-1 bucket
Snow bucket with wings
Snow blade
Barrel clamp
